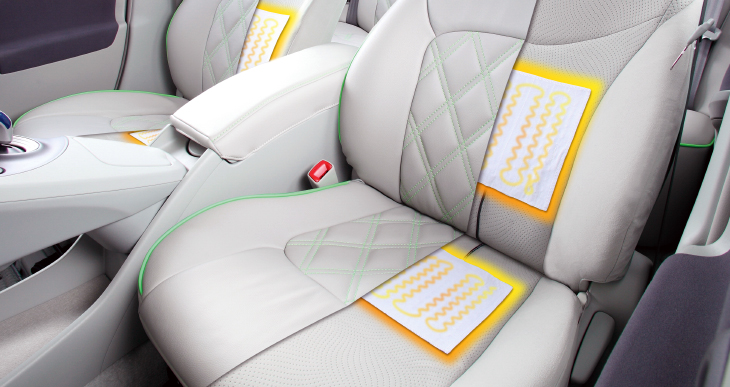

Back rest and seating area heaters warms you up immediately! You only have to insert this "double seat heaters" between the seat and the cover.
You are able to install these up to 6 seats (12 heaters). A remote controller at hand allows you to control three levels of heating temperatures.
Maximum 6 seats, 12 sheets are controllable. Each seat's temperature and timer can be set independently.
- ・Three levels of heating temperature can be set. HIGH (46°C +/− 3°C), MEDIUM (40°C +/− 3°C), LOW (38°C +/−3°C)
- ・Heaters at the driver's seat and the front passenger seat have 30% more heating power that they warm up more quickly than other seats.
- ・To prevent low temperature burns, 10 minutes after setting it to HIGH temperature, it automatically changes the setting to MEDIUM temperature.
- ・A thermostat preventing overheating than set temperature.
- ・70 minutes timer function. Automatically turns off the heating.
- ・Maximum 6 seats, 12 sheets are controllable remotely. Each seat's temperature and timer can be set independently. You can also control all the seat settings at once.
- ・Power efficient LED lamps are used for display allowing safe controlling at night.
- ・Safety design that resists momentary high pulse changes.
- ・Unleaded material is used for seat heaters for environmentally friendly design.

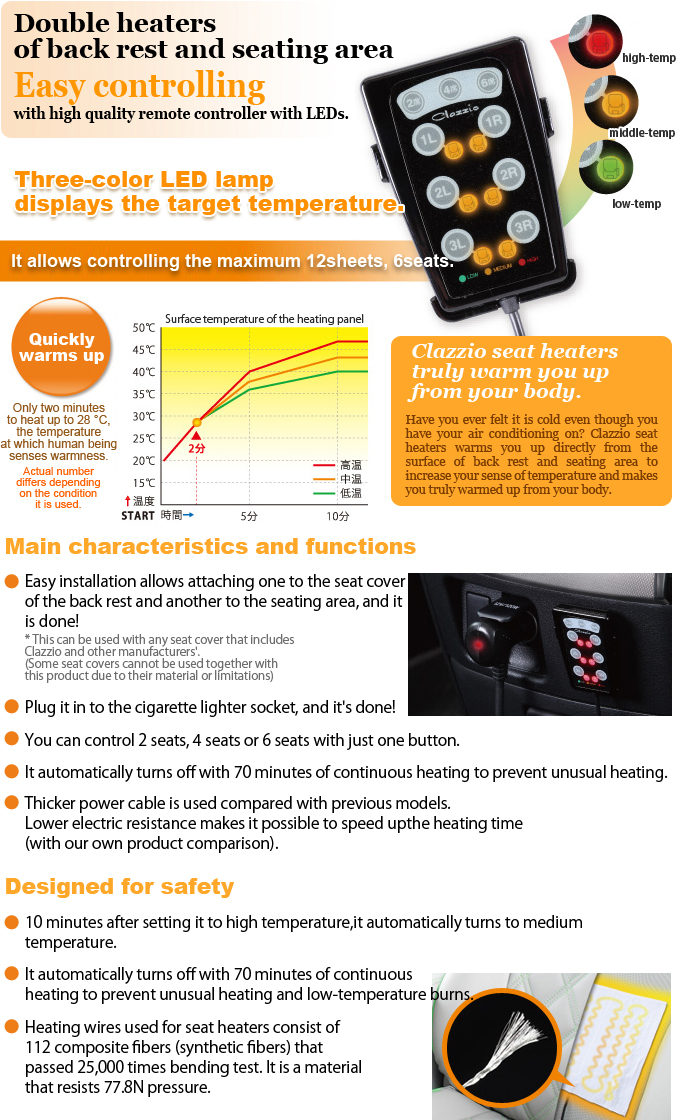

High quality product design for safety and environment
- ・Safety design that prevents excess electric current.
- ・Safety design that resists momentary high pulse changes.
- ・Unleaded material is used for seat heaters for environmentally friendly design.
Specifications
| Connection unit | 75mm×65mm×25mm |
|---|---|
| Remote controller | 65mm×45mm×11mm |
| Input electricity / Maximum allowable current | 12～14V / 8～8.5A |
| Timer settings | 70minuits |
| Product's storage temperature | -20～85℃ |
| Product's working environment | -20～75℃ |
Installation method
 |
 |
 |
 |
| (1) Decide the position of the seat heater by setting the position of the seat heater sheet to exactly where you sit on. |
(2) Peel it to expose the sticky surface and attach it to the seat cover so that the seat heater will be positioned to where you have decided to install to. * Be careful not to bend the seat heater. Bent seat heaters can cause wires to snap and short. |
(3) Put marks inside the seat covers for easy attachment. |
(4) Put the cable of the seat heater through to the back of the seat and connect it to the connection cable. Easy to connect with the red couplers. Connection cable 1L: For the front passenger seat Connection cable 1R: For the driver's seat Connection cable 2L: For the left seat of the second row Connection cable 2R: For the right seat of the second row Sold separately (Optional) Connection cable 3L: For the left seat of the third row Connection cable 3R: For the right seat of the third row |
 |
 |
 |
 |
| (5) Connect the cables to the connection unit. Just as in the image, they are 1L, 2R, 2L, 2R, 3L, 3R from the left. Connect cables to the corresponding sockets as written on the unit. (Please refer to page 6 to 7 for their names) ）
|
(6) Plug in the 12-Volt only power cable to the cigarette lighter socket. |
(7) Stick the double-sided tape to the holster of the central remote controller and place it to where the remote is easy for you to reach and control. |
(8) Make sure to cover the connection cables with protective cables if you want to hide the cables under objects such as floor mats. |
Controlling the seat heaters
(1) Setting (Setting each seat separately)
Press the switch of the seat number you want to warm up.
Press once to set the heater to HIGH temperature (Red LED turns on), pressing again to MEDIUM (Orange LED turns on).
Then to LOW (Green LED turns on), and then to OFF (Turns off), changing the states in this order.
(2) Quick setting (Setting the heaters of all the seats at once)
With each of [2 Seats 4 Seats 6 Seats] button located at the top of the remote controller, you can warm up the following seats at once:
2 Seats (first row seats)
4 Seats (first row and second row seats)
6 Seats (first row, second row and third row seats)
* Once a seat heater powers off, you need to set each heater's setting again.
* If you do not set the seat heater controls after the engine was started, seat heaters will automatically be turned off.
How to use the remote controller
You can easily control up to 6 seats with a single remote controller.
(1) Heater's cable sockets
Connect connection cables to the corresponding seat number sockets.
(2) USB remote controller socket
Connect the central remote controller to this socket.
(3) Power plug socket (12-volt cigarette lighter socket)
Plug in the power to the 12-Volt (only) cigarette lighter socket.
(4) Switches to control multiple seats at once
2You can control 2 to 6 seats at once. The driver's seat and the front passenger seat warm up faster with 30% higher power than other seats as they are most frequently used.
(5) Seat selection switches
You can control from the first row to the third row, maximum of 6 seats.
(6) LED seat temperature displays
Three color LEDs display the set temperatures supporting safe driving during the night.
●Low temperature (LOW)→ ● Medium temperature (MEDIUM)→ ● High temperature (HIGH)
* 10minutes after setting a seat heater to high temperature, it automatically set itself to the medium temperature.
* It automatically turns off with 70 minutes of continuous heating.
(7) Holster for the central remote controller
Use the included double-sided tape to stick the holder to places of your choice.
To remove the central controller from the holster, slide it up from the holster.
(B) USB connector
It connects the central remote controller to the connection unit.
troubleshooting
| Problems | Check method |
|---|---|
| Symptom: Problem with power | |
| Remote controller's lamp does not turn on. | Is the electricity provided from the vehicle? |
| Isn't the cigarette lighter socket's fuse blown? | |
| Is the cable properly plugged to the cigarette lighter socket and connection unit? Also, is there a red light (normal working status) inside the connection unit? |
|
| The switches of the remote controller do not work. | Is the cable properly plugged to the cigarette lighter socket and connection unit? |
|
|
| Symptom: Seats do not warm up | |
| Each LED light is turned on properly. | Isn't the cable of the seat end or the connection unit end plugged off? |
| Is the seat end cable plugged in properly to the right socket of the connection unit? | |
| Isn't the cable of the seat heater damaged? Isn't the seat heater itself damaged? |
|
| ・There's a possibility that the seat heater or the cable is malfunctioning. | |
| If each LED lamp of the remote controller does not turn on. | Is the cable between the connection unit and the remote controller properly plugged in? |
| ・There's a possibility that the connection unit or the remote controller is malfunctioning. | |
